GRADO

Graphics spotlight with homo-geneous light distribution

G

GRADO

The relaunch perfects the proven GRADO by means of a smaller and lighter design. GRADO is characterized by the precise large-area wall illumination for graphics, displays or visuals and the systematic illumination of assortment-containing aisles and goods, e.g. on back walls. At the same time, the specially developed rectangular reflector provides optimum glare-reduction in addition to the homogenous light distribution with soft edges.

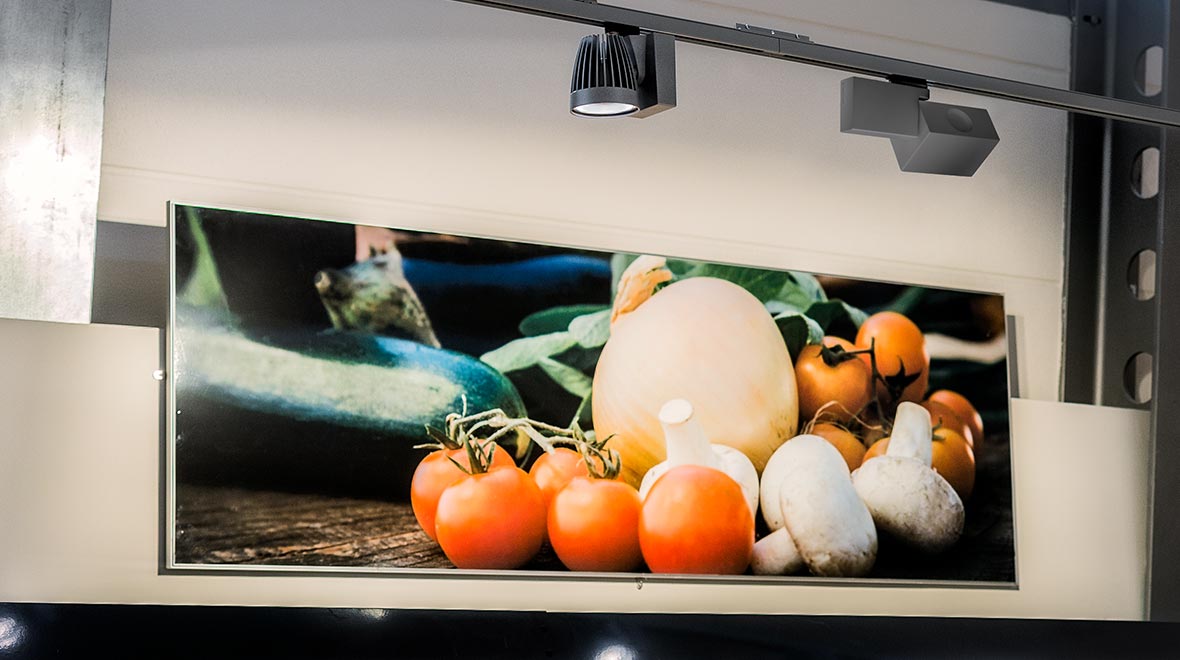

GRADO in use

Mounted parallel to the power track, it seems to disappear in the eye of the observer. At the same time the specially developed rectangular reflector provides, besides the homogeneous light distribution for graphics, displays or visuals, also optimum glare-reduction and hence meets all of the requirements of a modern and efficient shop lighting system in all retail areas.

The lighting artist: for horizontal product presentations such as fruit racks or promotions GRADO is just as suitable as for vertical goods illumination. The peripheral area shelf is additionally emphasized by the defined light imaging. LED modules such as Brilliant Food for fresh produce or Efficient White bring more depth and make colours shine authentically.

GRADO with a reflector for graphic illumination – Generates a rectangular light image with sharp edge delimitation: the first choice for the absolutely uniform illumination of graphics.

GRADO with a reflector for goods illumination – Generates rectangular light images with concentration of the centric core light as well as soft edge delimitation: optimally suited to horizontal or vertical product illumination from the fruit rack via the special area to the peripheral area shelf.

white

medium

dark

Color:

  • GRADO graphics reflector – with a special reflector for rectangular, homogeneous light imaging and sharp edge delimitation for defined surface illumination.
  • GRADO goods reflector – with a special reflector for rectangular light imaging with concentration of the centric core light and soft edge delimitation for clear product illumination
  • Vertical illumination of graphics – Clear illumination of displays and surfaces
  • Reliable illumination of goods – clear illumination of products on vertical or horizontal surfaces
  • Optimally balanced for simple mounting
  • Blends unobtrusively into the power track

Tilting through 110° degrees (thereof 20° upwards) and turning through 355° degrees

LEDIQ  for your smart lighting management

Technical Specifications & Downloads

Please select a light source

Application areas High-level decoration, Graphics illumination
Lumen category 2000 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K
Optic Specially designed reflector
Supply unit Driver
Lighting controls on request
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 1.4 kg

Technische Zeichnung_EN

Application areas High-level decoration, Graphics illumination
Lumen category 4000 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K
Optic Specially designed reflector
Supply unit DALI driver
Lighting controls DALI DT6
Installation Recommended for new installation.
Mounting Type: Global DALI
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 1.4 kg

Technische Zeichnung_EN

149

0

lm/W

Energy efficiency

GRADO has been changed over to the latest LED generation and has an efficiency of 149 lumens per watt.

* The comparative values are based on the uniform basis: colour temperature 4000 K and lumen class 4000 lm.

GRADO references


The Grado product family

GRADO

recessed luminaire


Single spotlight


Goods illumination


Lumen category up to 5000 lm


Luminaire head can be pivoted up to 30° on both sides


View product

GRADO TWIN

recessed luminaire


Twin spotlight


Goods illumination


Lumen category 2 x up to 5000 lm


Each luminaire head tilting on both sides through 30°


View product

GRADO

track light


Single spotlight


Graphics illumination or goods illumination


Lumen category up to 5000 lm


Turning through 355°, tilting on both sides through 110°


View product

GRADO TWIN

track light


Twin spotlight


Goods illumination


Lumen category 2 x up to 5000 lm


Each luminaire head tilting on both sides through 110°


View product
