KALO PLUS

High performance spotlight for the highest demands

LED IQ BLE | light management wireless | now available

K

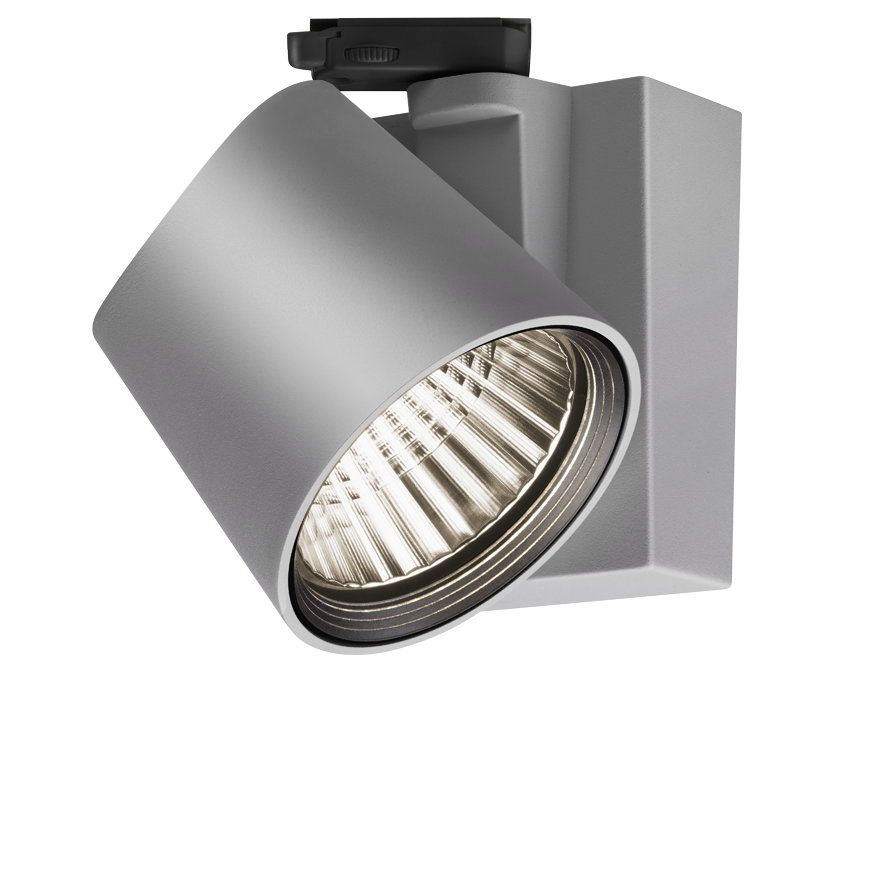

KALO PLUS

The maxi version of the track-mounted LED spotlight KALO distinguished with the Red Dot Award in 2019 introduces even more possibilities into room illumination. In this case, KALO PLUS yields an extremely convincing lighting performance especially in the case of high-ceilinged rooms. In its ideal areas of use, food and fashion or also automotive, it additionally wins points with its simple design that adapts to any furnishing or equipment.

Now wireless lighting management available for low-installation modernization.

KALO PLUS in use

Ideal accentuated lighting on the 3-circuit power track for the fashion area. KALO PLUS can be turned through 355° and tilted through 110°, in that way it illuminates back walls reliably and in an exciting way at the same time. With up to 5000 lm, this spotlight really brings power onto the area. Thanks to LEDIQ it is naturally also suitable for customized, smart lighting management.

KALO PLUS makes every fresh food paradise shine with a great long-distance and dramatic effect. The spotlight can be fitted with all six white light colours and all of our special light colours for best colour rendition of fish, for example, and according to our claim, it does credit to clear, authentic goods presentation and scenic quality light.

Good illumination and customer guidance are particularly important in stores with a high goods density. Here, everything depends particularly on the correct and widely varied accentuation of products and special areas. With five reflectors that can be replaced easily without tools, with KALO PLUS there are no limits to the sophisticated play of stable ambient lighting and well-dosed highlights.

Value added by more lighting management

Think LEDIQ! The demands made on a modern lighting control system are diverse. From the emotionalising of small areas at the POS as far as the building lighting management, every area in the store requires its personal solution.

Find out more

Lightquality – inspired by the sun

Lighting, as natural and atmospheric as the afternoon sun on a clear spring day, at the same time with intense and brilliant colour: this performance is our inspiration for the optimization of holistic lighting for retail.

FIND OUT MORE

white

medium

dark

Color:

Light-proof housing with partially external cooling fins

Five interchangeable reflectors that can be changed without tools

Turning through 355°, tilting through 180°

Six white light colours and three special light colours for the fresh food area are there to choose from

Smart lighting management optionally with control line or wireless

Technical Specifications & Downloads

Please select a light source

Application areas Accent lighting
LED Luminous Flux Class 1500 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K, M, M+F, BF
Optic 3D facetted reflectors
Supply unit Driver
Lighting controls on request
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 2.0 kg

Technische Zeichnung_EN

Application areas Accent lighting
LED Luminous Flux Class 3000 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K, M, M+F, BF
Optic 3D facetted reflectors
Supply unit DALI driver
Lighting controls DALI DT6
Installation Recommended for new installation.
Mounting Type: Global DALI
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 2.0 kg

Technische Zeichnung_EN

Application areas Accent lighting
LED Luminous Flux Class 2000 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K, M, M+F, BF
Optic 3D facetted reflectors
Supply unit BLE-Driver
Lighting controls Bluetooth Low Energy
Installation Recommended for modernization or new installation.
In a BLE network up to 127 luminaires can be coupled. A stable Bluetooth connection depends on the particular local situation. In the case of this luminaire type it amounts to up to 15 m.
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 2.0 kg

Technische Zeichnung_EN


The Kalo product family

KALO

track light


For relatively small rooms


Lumen package up to 4000 lm


Can be turned through 350° and tilted through 180°


View product

KALO PLUS

track light


For relatively high ceilings and relatively large rooms


Lumen category up to 5000 lm


Can be turned through 350° and tilted through 180°


View product
