oktalite

B.VEO TWIN

Twin Light with clean ceiling appearance

B

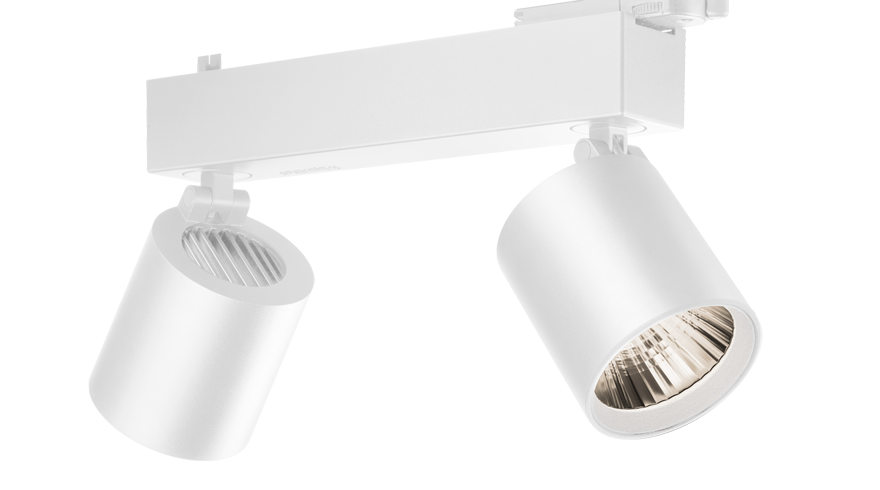

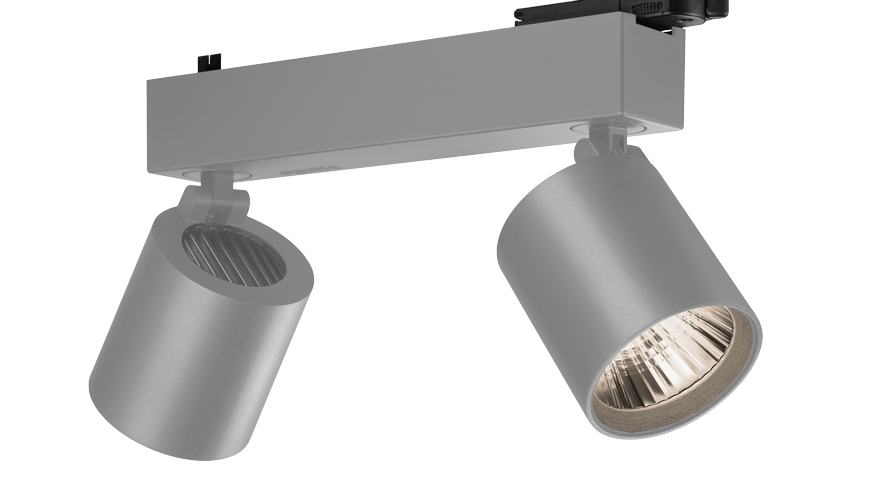

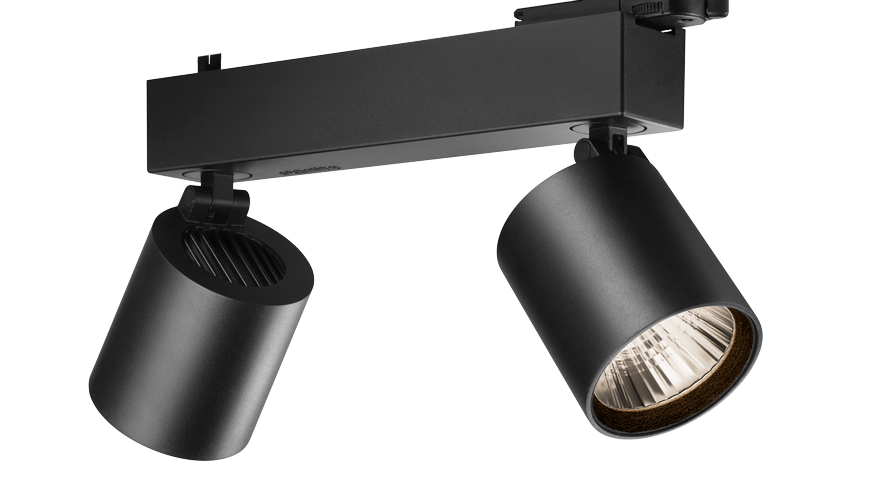

B.VEO TWIN

B.VEO TWIN with two spotlight heads and unobtrusive housing is the ideal partner for the strongly accentuated and yet harmonious ceiling and wall design. Hence the number of spotlights can be doubled or the unit can be systematically supplemented with the same number of luminaires and without additional driver housings: the calm overall impression remains!

The track-guided accentuation lighting provides, thanks to the two tilting and turning spotlight heads, maximum flexibility for the setting of scenes in the sales area. The result is unobtrusive but precise lighting. This permits complex and clean PoS lighting design. And, beyond that, a lighting update with only one system and a perfectly coordinated product family as regards design and features.

The member of the B.VEO family brings light twice as well onto the target surface. Whether fashion or shop - depending on the goods segment or season you position the two directional spotlights very easily and precisely. Available with different luminous flux packages, all six white light colours and in five beam characteristic versions.

Lightquality – inspired by the sun

Lighting, as natural and atmospheric as the afternoon sun on a clear spring day, at the same time with intense and brilliant colour:
this performance is our inspiration for the optimization of holistic lighting for retail.

FIND OUT MORE

The chip in an LED (light-emitting diode) converts electric energy via electroluminescence into light. The complex and customized interplay between semi-conductor crystal and the fluorescent conversion layer above it defines the LED module as a "package". The customized composition of this package also plays a part in deciding on the quality, colour rendition, colour saturation and depth of field of the lighting. BRILLIANT COLOUR and EFFICIENT WHITE: our LED modules in unprecedented specification are the result of intensive research and development.

The colour rendering index CRI comprises, according to DIN 6169, only eight specified test colours consisting of pastel shades between antique rose and lilac. This so-called Ra was later supplemented in order, for example, to be able to better assess a saturated red (R 9): The extended CRI (Re) therefore includes six additional colours: red, yellow, green, blue, plus pink (flesh colour) as well as leaf green. The ideal value for the most natural colour rendering is in the case of the CRI generally 100. Already on the basis of the two indices Ra and Re it becomes clear: equal or similar CRI values do not automatically mean that the colour rendering of a light source is equal or similar. It is only the graph that makes the differences clear in detail.

white

medium

dark

Color:

Two spotlight heads with high-perofmance reflector, diameter of of only 75 mm

The chic design also gives two spotlights on the track a delicate appearance.

  • High energy efficiency of up to 120 lm/W
  • Lumen packages of between 3000 and 4000 lumens per luminaire head

For the basic equipping with B.VEO TWIN the costs are kept within limits

Thanks to LEDIQ technology there are many possibilities of customised and easily controllable dynamic lighting concepts

Technical Specifications & Downloads

Please select a light source

Application areas Accent lighting
Lumen category 1500 lm - 4000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K , B+V+C, M, M+F
Optic 3D facetted reflectors
Supply unit Driver
Lighting controls on request
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 2.0 kg

Technische Zeichnung_EN

Downloads

Product data sheets

Mounting instructions 569 KB zip

IES 3 KB zip

LDT 8 KB zip

ULD 1 MB zip

3DS 69 KB zip

Application areas Accent lighting
Lumen category 2000 lm - 4000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K , B+V+C, M, M+F
Optic 3D facetted reflectors
Supply unit DALI driver
Lighting controls DALI DT6
Installation Recommended for new installation.
Mounting Type: Global DALI
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 2.0 kg

Technische Zeichnung_EN

Downloads

Product data sheets

Mounting instructions 569 KB zip

IES 3 KB zip

LDT 8 KB zip

ULD 1 MB zip

3DS 69 KB zip

118

0

lm/W

Energy efficiency

B.VEO TWIN has been changed over to the latest LED generation and has an efficiency of 118 lumens per watt.

* The comparative values are based on the uniform basis: colour temperature 4000 K and lumen class 4000 lm.

The B.Veo product family

B.VEO ON

recessed luminaire


Recessed spotlight


Driver separate


Lumen package up to 4000 lm


Can be turned through up to 355° and tilted through 90°


View product

B.VEO

track light


Single spotlight


Driver in separate housing


Lumen package up to 4000 lm


Can be turned through up to 355° and tilted through 90°


View product

B.VEO TWIN

track light


Twin spotlight


Driver in separate housing


Lumen package 2 x 4000 lm


Can be turned through 270° and tilted through 90°


View product

B.VEO TRACK

track light


Single spotlight


Driver integrated into power track adapters


Lumen package up to 4000 lm, Best Colour up to 3000 lm


Can be turned through 355° and tilted through 90°


View product
