GRADO

Graphics spotlight with homo-geneous light distribution

G

GRADO

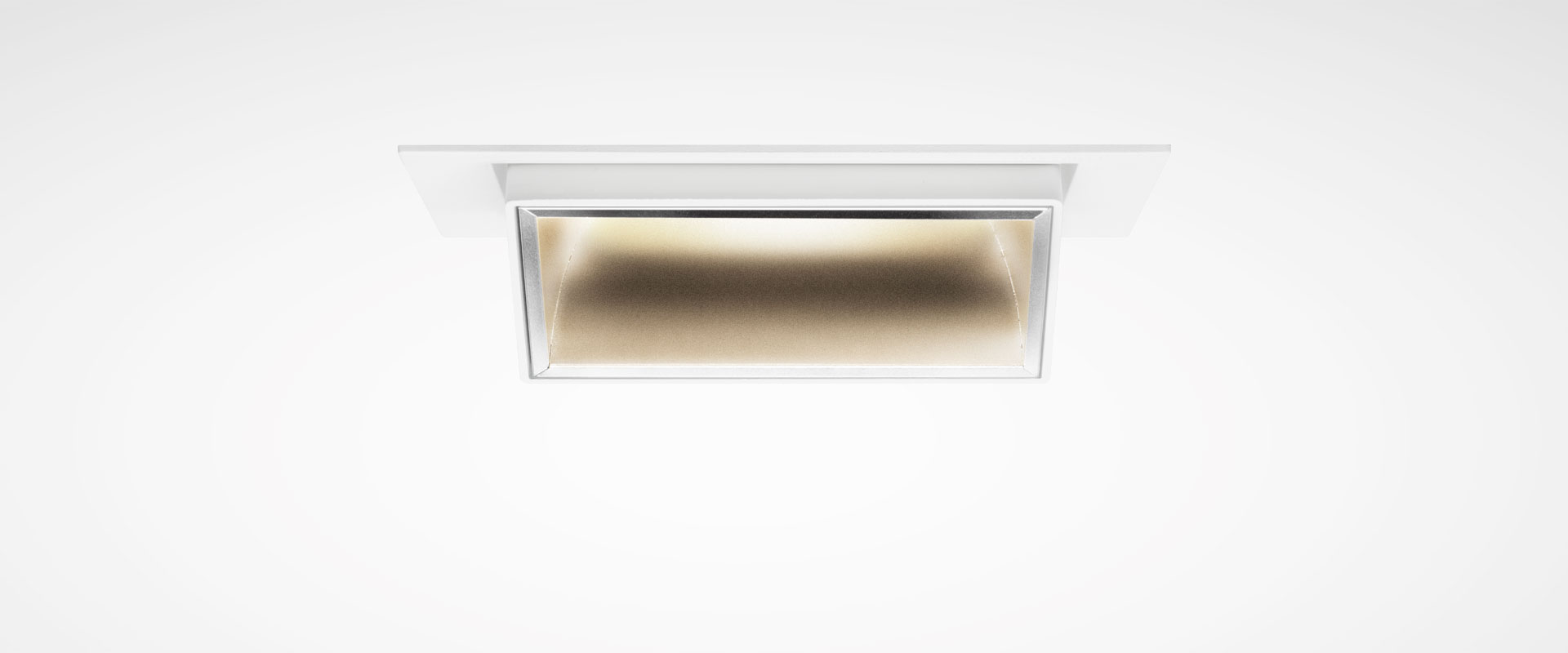

The GRADO success story continues! For the award-winning power track-mounted spotlights GRADO and GRADO TWIN we are now, with the GRADO recessed variant, for both versions adding even more flexibility to optimum lighting solutions for retail. Since in that way GRADO can also be used with closed ceilings. The cleanly designed luminaire can at the same time, via the spotlight head pivotable around an axis, be oriented ideally to the goods. With its unobtrusive appearance it additionally ensures a harmonious ceiling layout.

GRADO in use

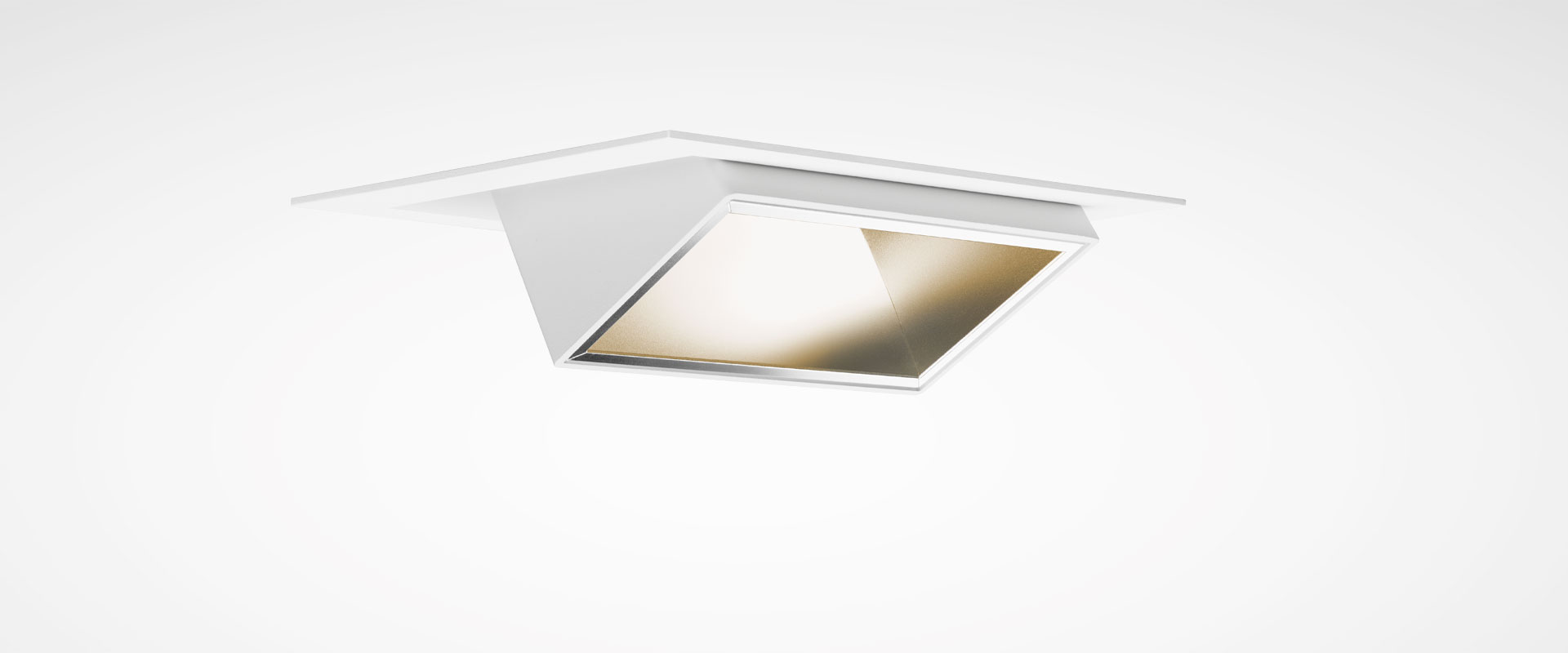

Harmonious illumination for every assortment: the GRADO recessed luminaire has a 30° swivel range. Equipped with six white light colours or our LED module BRILLIANT FOOD, this spotlight once again shows itself with its superb allrounder abilities for the generation of clear, naturally intense light for food and more. The spotlight head half protruding from the ceiling sets a pleasantly tidy visual accent. Also technically it is pleasing thanks to the new, patented  installation spring, as replacement of the luminaire has become even easier.

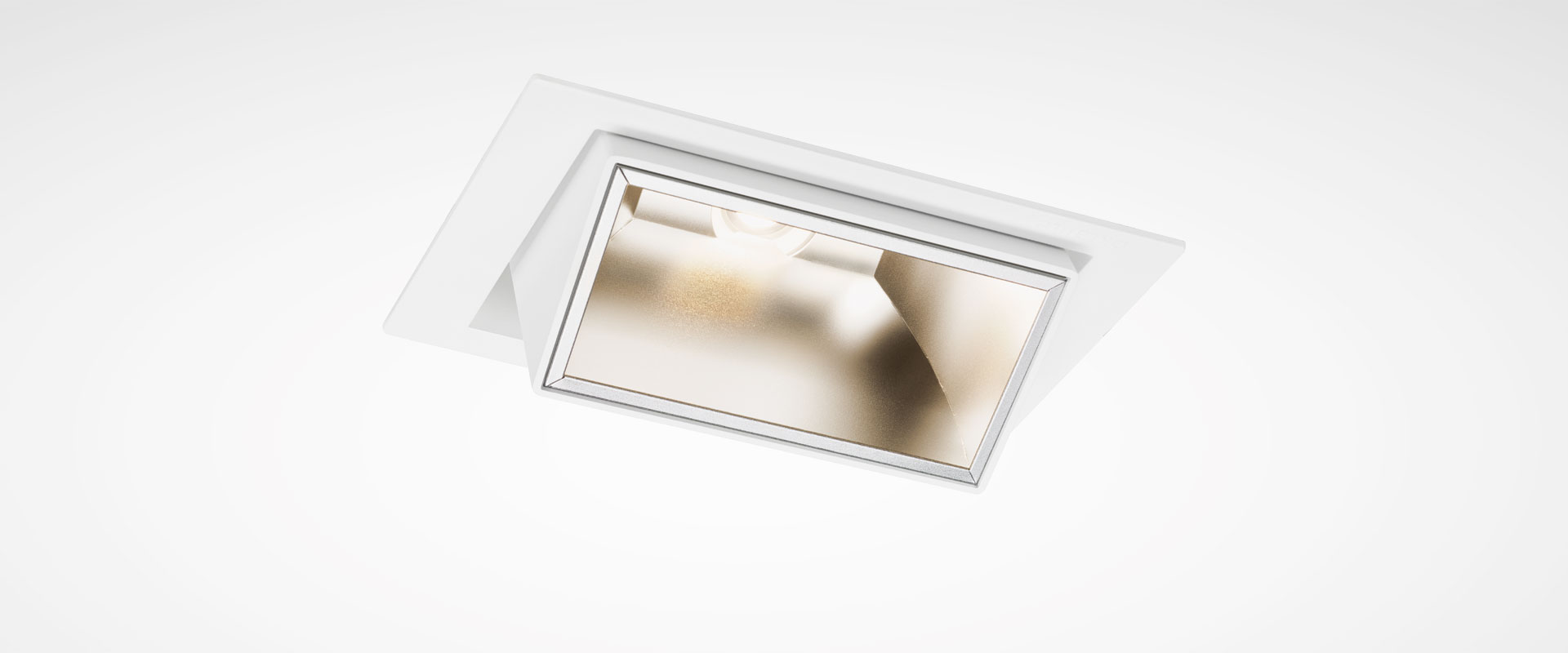

GRADO with a reflector for goods illumination
Generates rectangular light imaging with concentration of the centric core light as well as soft edge delimitation: ideally suited to horizontal or vertical product illumination from the rack via the special area to the peripheral area shelf.

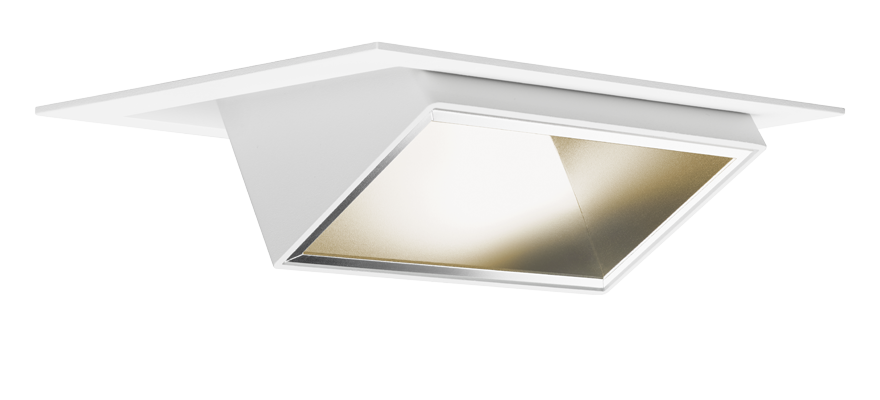

Weiß

white

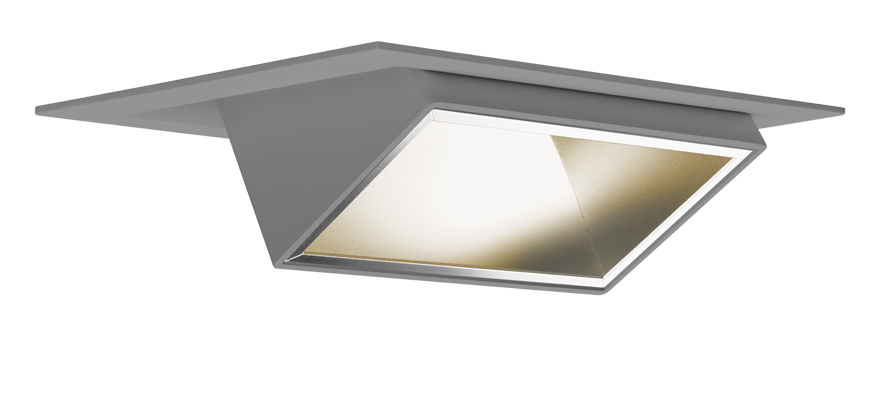

silber

medium

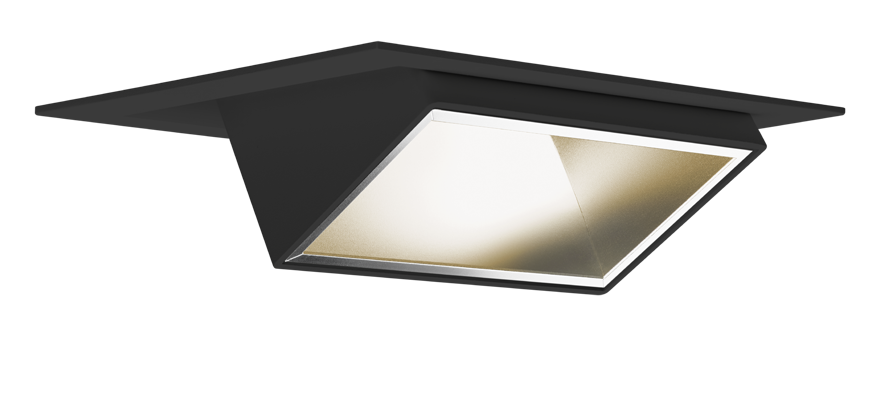

schwarz

dark

Color:

Clear light imaging with centric core light

Intense vertical and horizontal goods illumination

New, patented installation spring for simple installation and removal

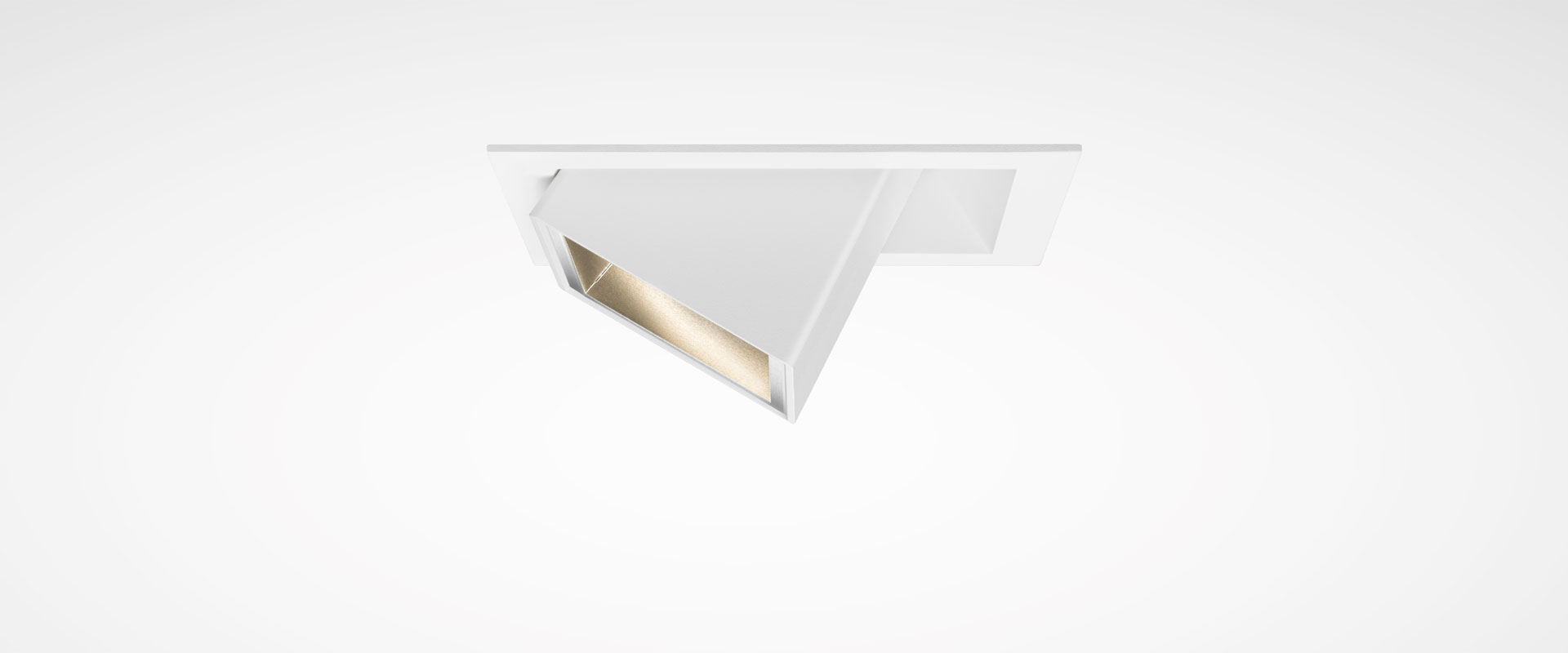

Spotlight head can be swivelled through 30° with aesthetic/subdued ceiling layout

LEDIQ  for your smart lighting management

Technical Specifications & Downloads

Please select a light source

Application areas Aisle zone illumination
LED Luminous Flux Class 1500 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K, M, M+F, BF
Optic Specially designed reflector
Supply unit Driver
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 1.3 kg

Technische Zeichnung_EN

Application areas Aisle zone illumination
LED Luminous Flux Class 3000 lm - 5000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K, M, M+F, BF
Optic Specially designed reflector
Supply unit DALI driver
Installation Recommended for new installation.
Mounting Type: Global DALI
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 1.3 kg

Technische Zeichnung_EN

148

0

lm/W

Energy efficiency

GRADO has been changed over to the latest LED generation and has an efficiency of 148 lumens per watt.

* The comparative values are based on the uniform basis: colour temperature 4000 K and lumen class 4000 lm.

The Grado product family

GRADO

recessed luminaire


Single spotlight


Goods illumination


LED Luminous Flux Class up to 5000 lm


Luminaire head can be pivoted up to 30° on both sides


View product

GRADO TWIN

recessed luminaire


Twin spotlight


Goods illumination


LED Luminous Flux Class 2 x up to 5000 lm


Each luminaire head tilting on both sides through 30°


View product

GRADO

track light


Single spotlight


Graphics illumination or goods illumination


LED Luminous Flux Class up to 5000 lm


Turning through 355°, tilting on both sides through 110°


View product

GRADO TWIN

track light


Twin spotlight


Goods illumination


LED Luminous Flux Class 2 x up to 5000 lm


Each luminaire head tilting on both sides through 110°


View product
