oktalite

AGIRA

Small, compact and extremely flexible

LED IQ BLE | light management wireless | now available

A

AGIRA

It is a small structure with maximum flexibility. That characterises AGIRA since the spotlight can be swivelled round one axis and additionally can be rotated through 355 degrees and hence combined the advantages of a gimbal-mounted luminaire with those of a classic recessed spotlight. In that way the light purposefully reaches the goods and sets accents there.

Now wireless lighting management available for low-installation modernization.

AGIRA in use

Small and compact – with a diameter of only 130 millimetres the recessed LED luminaire AGIRA is put to a range of uses at the PoS and cuts a good figure in different contexts. The small design and the great flexibility make the luminaire the preferred partner of many shopfitting styles and presentations for food, fashion or showrooms.

Segmented reflectors made of Miro-Silver® distribute the light with 3000 lumens effectively and direct it exactly to where it is required.

Tilted in AGIRA functions as a downlight for a clam ceiling appearance in the store. It is quite particularly suitable for small rooms with low ceilings and for all stores and shops that wish to combine reticence with power.

Lightquality – inspired by the sun

Lighting, as natural and atmospheric as the afternoon sun on a clear spring day, at the same time with intense and brilliant colour:
this performance is our inspiration for the optimization of holistic lighting for retail.

FIND OUT MORE

The chip in an LED (light-emitting diode) converts electric energy via electroluminescence into light. The complex and customized interplay between semi-conductor crystal and the fluorescent conversion layer above it defines the LED module as a "package". The customized composition of this package also plays a part in deciding on the quality, colour rendition, colour saturation and depth of field of the lighting. BRILLIANT COLOUR and EFFICIENT WHITE: our LED modules in unprecedented specification are the result of intensive research and development.

The colour rendering index CRI comprises, according to DIN 6169, only eight specified test colours consisting of pastel shades between antique rose and lilac. This so-called Ra was later supplemented in order, for example, to be able to better assess a saturated red (R 9): The extended CRI (Re) therefore includes six additional colours: red, yellow, green, blue, plus pink (flesh colour) as well as leaf green. The ideal value for the most natural colour rendering is in the case of the CRI generally 100. Already on the basis of the two indices Ra and Re it becomes clear: equal or similar CRI values do not automatically mean that the colour rendering of a light source is equal or similar. It is only the graph that makes the differences clear in detail.

White

white

Silver

medium

Black

dark

Color:

Efficient facetted reflectors in SP, MF, FL, WFL, VWFL

Six white light colours plus special light ranges available for the fresh food area

Can be tilted 30° in both directions and turned through 355° for optimum illumination of the goods

Accessories: protective glass cover

Smart lighting management optionally with control line or wireless

Technical Specifications & Downloads

Please select a light source

Application areas base illumination, Accent lighting
Lumen category 1500 lm - 4000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K , B+V+C, M, M+F
Optic 3D facetted reflectors
Supply unit Driver
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 0.8 kg

Technische Zeichnung_EN

Downloads

Product data sheets

Mounting instructions 664 KB zip

IES 3 KB zip

LDT 7 KB zip

Revit 1,008 KB zip

ULD 552 KB zip

Application areas base illumination, Accent lighting
Lumen category 2000 lm - 4000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K , B+V+C, M, M+F
Optic 3D facetted reflectors
Supply unit DALI driver
Installation Recommended for new installation.
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 0.8 kg

Technische Zeichnung_EN

Downloads

Product data sheets

Mounting instructions 673 KB zip

IES 3 KB zip

LDT 7 KB zip

Revit 1,008 KB zip

ULD 552 KB zip

Application areas base illumination, Accent lighting
Lumen category 2000 lm - 4000 lm
Light colour 2700 K, 3000 K, 3000 K - Efficient White, 3000 K - Brilliant Colour, 3500 K, 4000 K , M, M+F, BF
Optic 3D facetted reflectors
Supply unit BLE-Driver
Installation Recommended for modernization or new installation.
In a BLE network up to 127 luminaires can be coupled. A stable Bluetooth connection depends on the particular local situation. In the case of this luminaire type it amounts to up to 25 m.
Material Die-cast aluminium
Luminaire colour RAL 9005 jet black
RAL 9006 white aluminium
RAL 9016 traffic white
Weight Approx. 0.8 kg

Technische Zeichnung_EN

Downloads

Product data sheets

Mounting instructions 673 KB zip

Short Guide LED IQ BLE 2 MB pdf

IES 3 KB zip

LDT 7 KB zip

Revit 1,008 KB zip

ULD 552 KB zip

125

0

lm/W

Energy efficiency

AGIRA has been changed over to the latest LED generation and has an efficiency of 125 lumens per watt.

* The comparative values are based on the uniform basis: colour temperature 4000 K and lumen class 4000 lm.

AGIRA references

GL - Die Mode

Arnsberg-Neheim, Germany

View reference

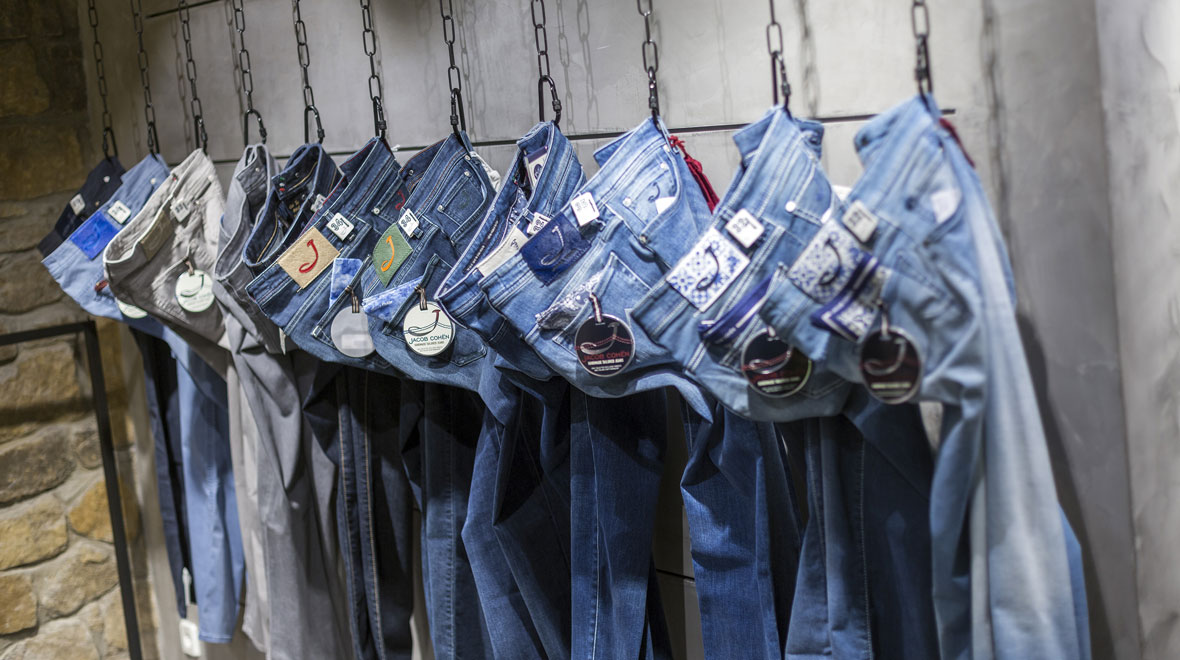

Kaiser

Freiburg in Breisgau, Germany

View reference

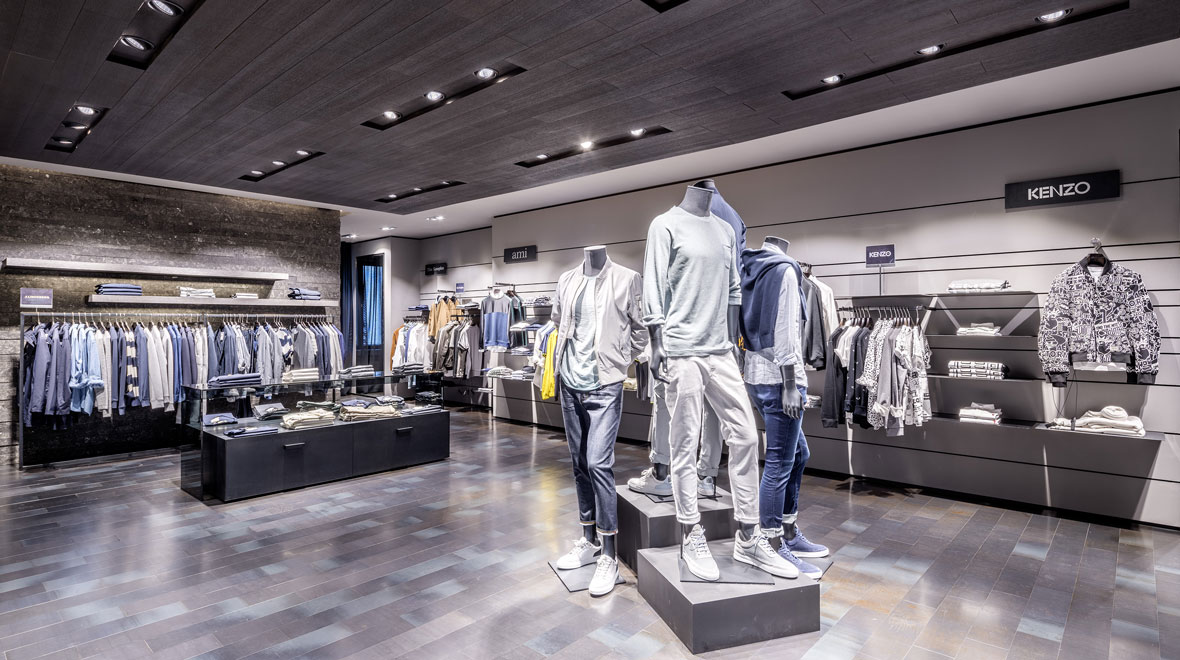

Kaiser S1

Freiburg in Breisgau, Germany

View reference


The Agira product family

AGIRA

recessed luminaire


For relatively small rooms


Lumen package up to 4000 lm


Ceiling cutout Ø 130 mm


View product

AGIRA PLUS

recessed luminaire


For relatively high ceilings and relatively large rooms


Lumen package up to 5000 lm


Ceiling cutout Ø 175 mm


View product
